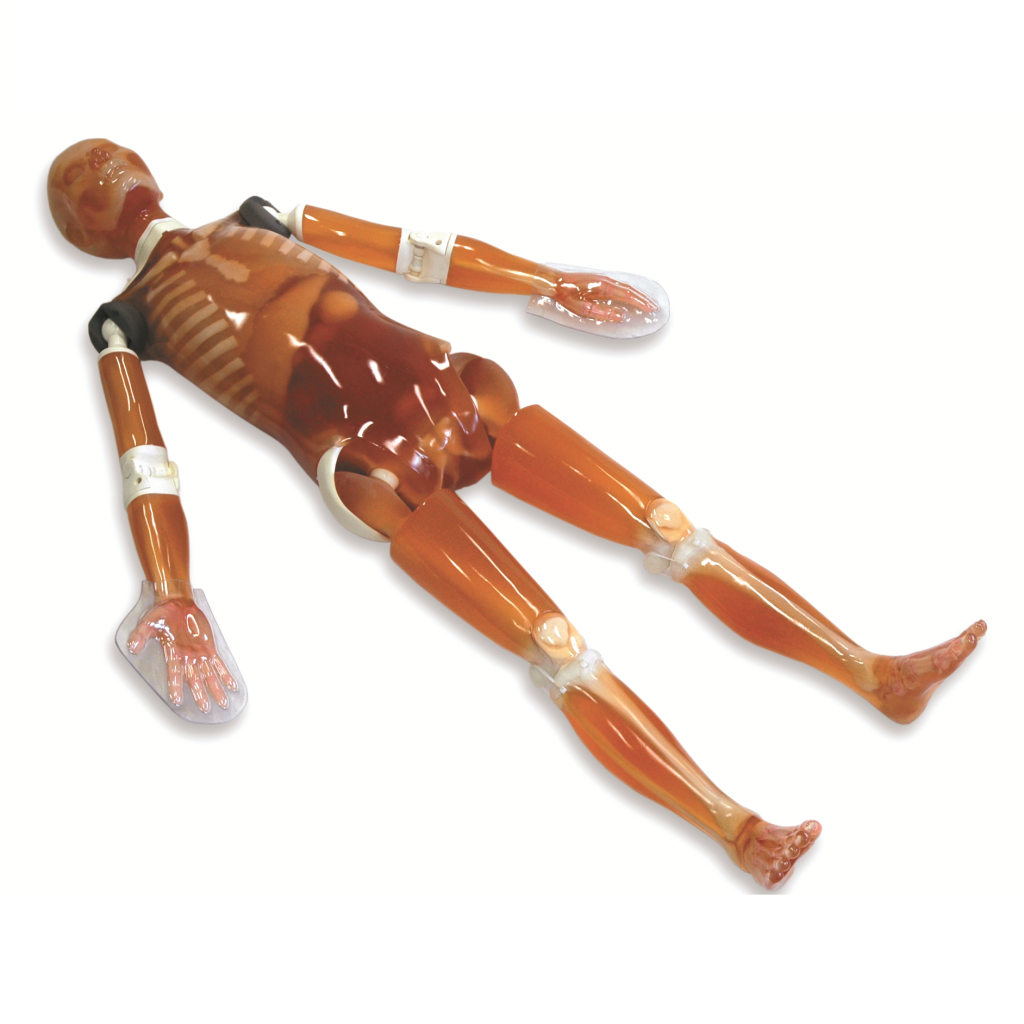

X-Ray Whole Body Phantom "PBU-50"
1CALL FOR PRICING
A whole body imagiong phantom suitable for plain x-ray, basic pateint positioning and basic CT imaging.
Radiology absorption and HU number approximate to human body.
Main joints have close-to human articulation
Phantom can be disassembled into 10 individual parts
Included anatomy:
skull / spine / clavicles / scapulae / ribs / sternum / coxal bones / lungs with pulmonary vessels / trachea
(up to primary bronchi) / heart / liver with portal and hepatic veins / kidneys / humerus / antebrachial bone
/ bones of hand / femur / patella / lower leg bone / bones of foot
SKU:
RG1171
Brand:
Kyoto
| Features | 1. Radiology absorption and HU number approximate to human body. 2. Main joints have close-to human articulation 3. Phantom can be disassembled into 10 individual parts |
|---|---|
| Training skills / Applications | Plain X-ray / Basic patient positioning / Basic CT |
| Set includes | 1 whole body phantom / 1 head supporter / 1 flat head screwdriver/ 1 set of samaple X-ray / manual |
| Height (approx.) | 165 cm /65in |
| Packing size (approx.) | W92 x D57 x H38cm, W37 x D23 x H15in / W90 x D63 x H22cm, W36 x D25 x H9in / W89 x D57 x H16cm, W35 x D23 x H6in |
| Weight (approx.) | 50 kg / 110 lb |
| Packing weight (approx.) | 80 kg / 176 lb |
| Materials | Soft tissue: urethane based resin (density: 1.06) Synthetic bone: epoxy resin (density: 1.31) Skull: epoxy resin (density:1.11) *Phantom has no metal parts or liquid structure |
| Replacement parts | 41350-000-01 head for PH-2 / 41350-200-02 right hand for PH-2＆2B / 45350-200-03 left hand PH-2＆2B / 41350-200-04 right upper arm for PH-2&2B / 41350-200-05 left upper arm for PH2&2B / 41350-000-06 torso for PH-2 / 41350-200-12 right thigh for PH2&2B /41350-200-13 left thigh for PH2&2B / 41350-200-14 right foot for PH2&2B / 41350-200-15 left foot for PH2&2B |
| Optional parts | 41363-070 storage cases (consist of 2 boxes) / 41350-200-16 body plates for PH-2/2B (BMI 32) / 41350-200-17 body plates for PH-2/2B (BMI 40) |
| Related products | PH-2D Bone Fracture Pediatric Phantom PBU-70B PH-2E CT Whole Body Phantom with Pathologies PH-60 Tough Whol;e Body Phantom "PBU-90 RUGGED" PH-2B Whole Boday Phantom "PBU-60" 41350-000-11 Fractured Hand/Forearm Phantom for PH2/2B |
| Anatomy | skull / spine / clavicles / scapulae / ribs / sternum / coxal bones / lungs with pulmonary vessels / trachea (up to primary bronchi) / heart / liver with portal and hepatic veins / kidneys / humerus / antebrachial bone / bones of hand / femur / patella / lower leg bone / bones of foot |
| Update | July 28, 2020 |
