CORE Materials

Our Radiation Protection Products assure maximum protection against ionising radiation in hazardous work environments. We employ strict quality assurance standards for our radiation protection products are guaranteed and ensure they meet all the requirements of IEC 61331-1: 2014 BBG*

CORE MATERIAL ​ LIGHTWEIGHT LEAD ULTRA LIGHTWEIGHT, EDGE BILAYER LEAD FREE CORE MATERIAL SUMMARY SHEETS TEST REPORTS

CORE MATERIAL

Pb light weight lead

​
LIGHTWEIGHT LEAD

Lightweight lead is better suited to environments when the apron will be worn for shorter periods as whilst it is a much cheaper option it is also significantly heavier than our edge bilayer, lead free option.

As the Lightweight lead is tested up to 150 Kv it makes this material more suitable for high KV procedures.

If you are working in a high KV environment, contact us about our edge bilayer Lead option which offers a weight saving whilst maintaining the high Kv protection.

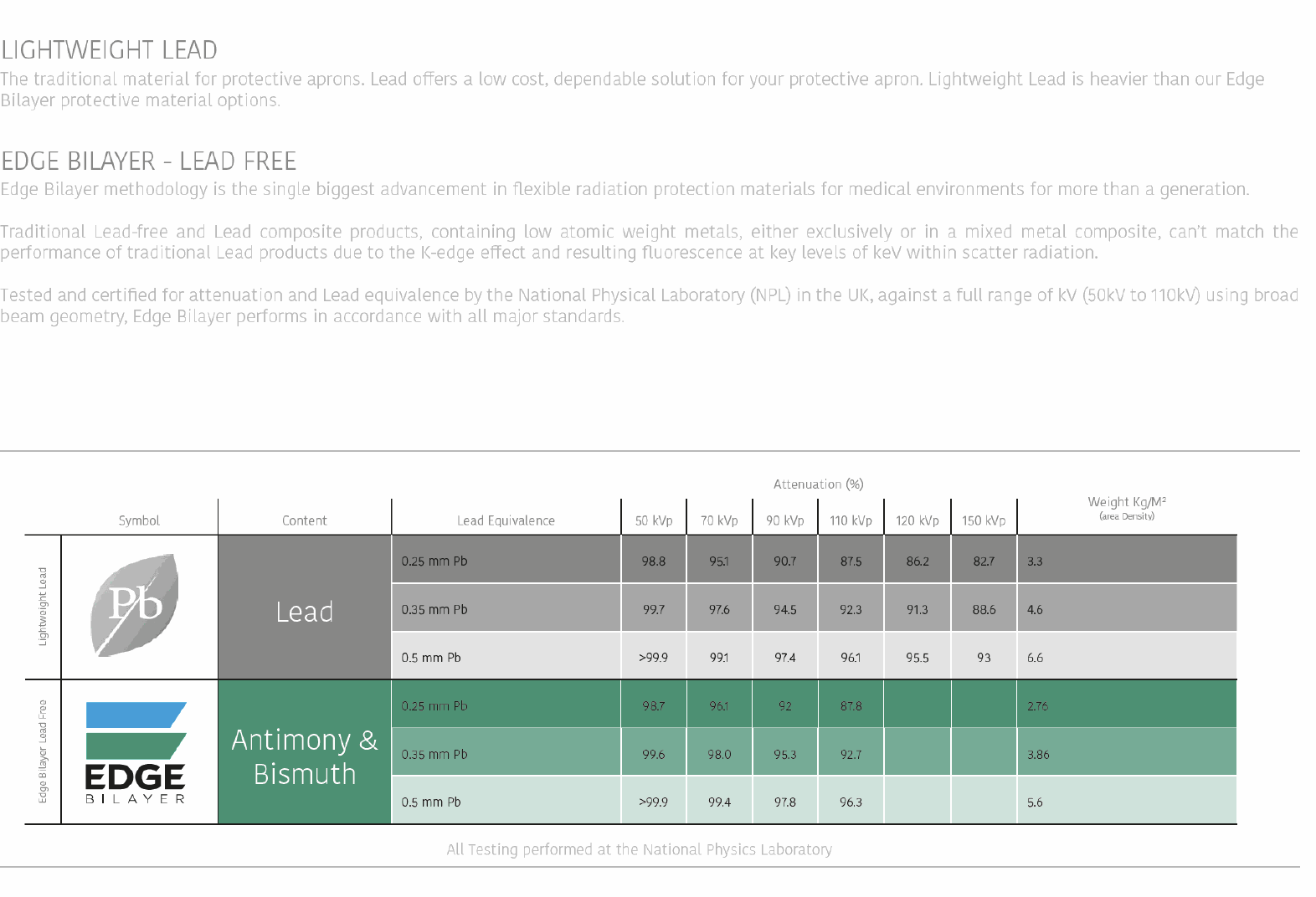

Lead Equivalence Attenuation (%) Weight Kg/M2
50 kVp 70 kVp 90 kVp 110 kVp 120 kVp 150 kVp
0.25 mm Pb 98.8 95.1 90.7 87.5 86.2 82.7 3.34
0.35 mm Pb 99.7 97.6 94.5 92.3 91.3 88.6 4.76
0.5 mm Pb *>99.9 99.1 97.4 96.1 95.5 93 6.8

edge bilayer lead

ULTRA LIGHTWEIGHT, EDGE BILAYER LEAD FREE

Our ultralight Edge Bilayer - Lead Free solution, By layering Antimony with Bismuth it provides a superior level of protection that conforms to the highest standards at the lowest weights.

  • This solution, is better suited to environments when the apron will be worn for longer periods as whilst it is a much more expensive option it is also significantly lighter than our lightweight lead option

  • In order to keep the weight low, our Bilayer material is tested to 110Kv, which helps us reduce the weight and is suitable for most interventional work when the aprons may be worn for longer periods.

  • If you are working in a high KV environment, contact us about our edge bilayer Low Lead option which offers a weight saving whilst maintaining the high Kv protection.


Lead Equivalence Attenuation (%) Weight Kg/M2
50 kVp 70 kVp 90 kVp 110 kVp 120 kVp 150 kVp
0.25 mm Pb 98.7 96.1 92 87.8 2.8
0.35 mm Pb 99.6 98 95.3 92.7 3.8
0.5 mm Pb *>99.9 99.4 97.8 96.3 5.6

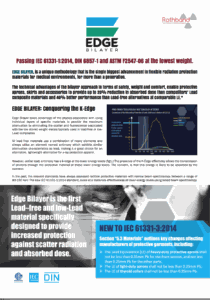

CORE MATERIAL SUMMARY SHEETS

Odoo - Sample 1 for three columns

Core Material Summary

DOWNLOAD



TEST REPORTS

Odoo - Sample 1 for three columns

Lightweight Lead

Test Report

DOWNLOAD



Odoo - Sample 1 for three columns

Edge Bilayer - Lead Free

Test Report

DOWNLOAD



Odoo - Sample 1 for three columns

Edge Bilayer - Low Lead

Test Report

DOWNLOAD
