Radiation Protection

The Original Lead Apron company

Rothband is the UK's leading manufacturer of radiation protection with over 100 years of experience in the sector.
From our factory in Lancashire, we passionately make the garments by hand and can claim some of the lightest, and most conformable garments available.

TABARD APRONS

The tabard design is a simple to wear option that is typically open at the sides.They are well suited to environments where an apron is only required for relatively short periods of time.

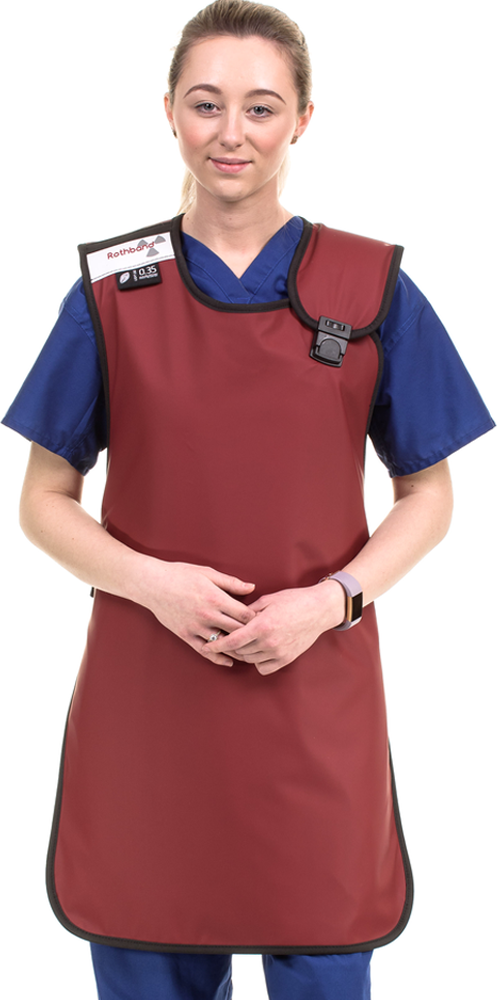

woman in shoulder clip apron

RADIATION PROTECTION
SHOULDER CLIP

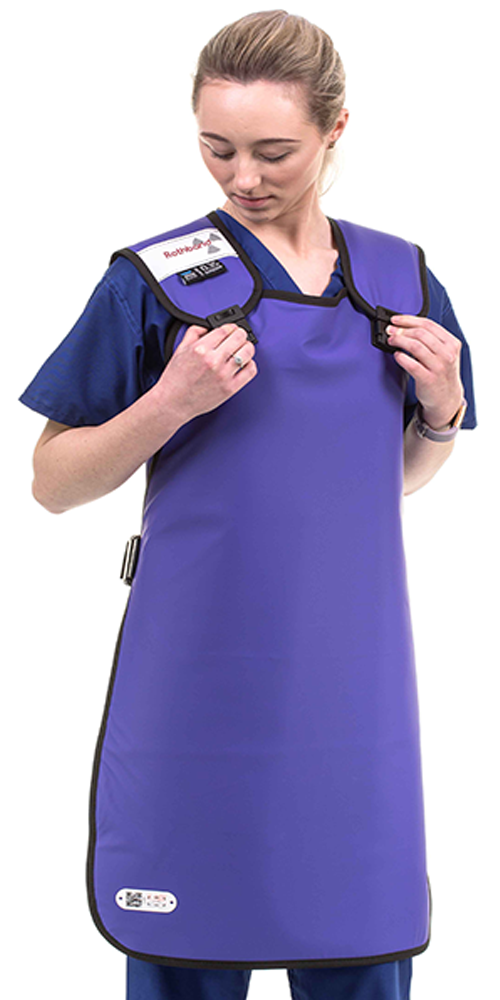

woman in theatre style apron

RADIATION PROTECTION
THEATRE STYLE

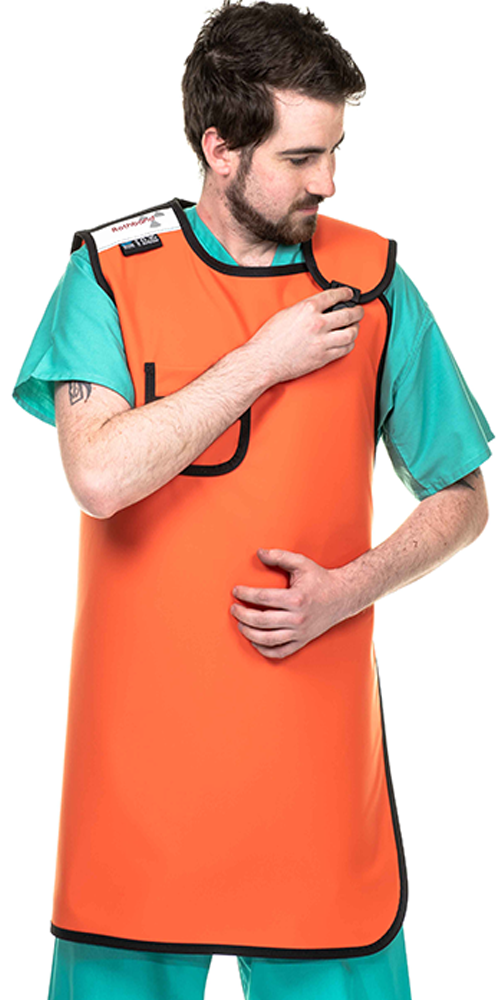

man in dr c apron

RADIATION PROTECTION
DR C APRON

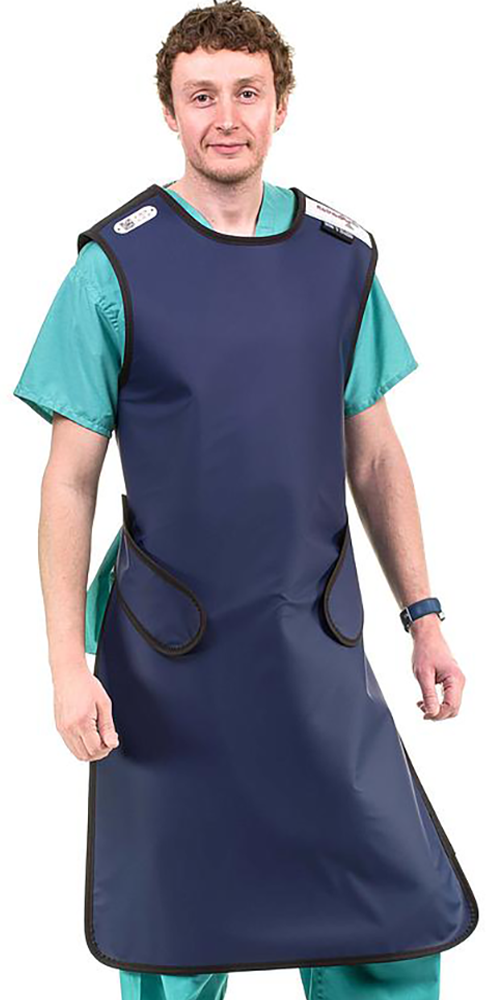

man in variweight apron

RADIATION PROTECTION
VARIWEIGHT

LOOKING FOR LIGHTWEIGHT APRONS ?

WE HAVE THE LIGHTEST MATERIALS ON THE MARKET THAT PASS THE 61331-1:2014 BBG* STANDARD.

WRAPAROUND DESIGNS

This 'closed' design apron offers a greater degree of protection at the sides making it more suitable for longer procedures.

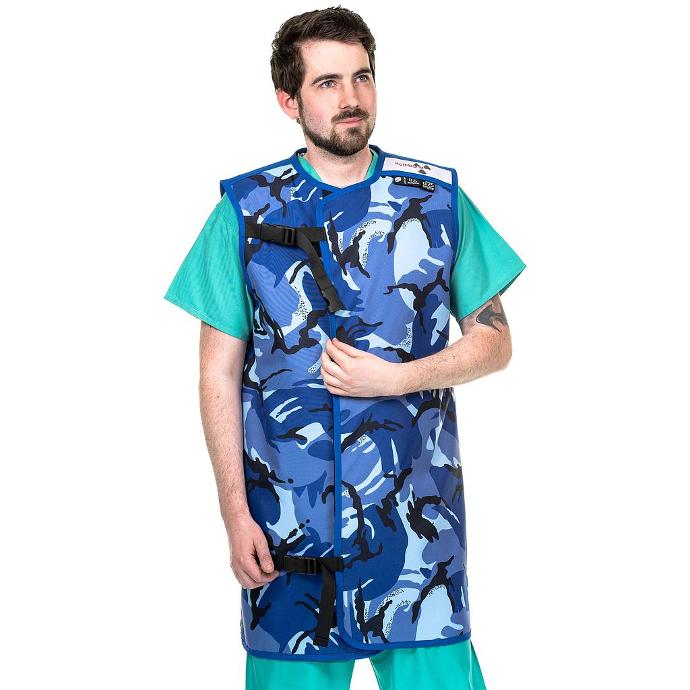

man in wraparound mk 1 apron

 RADIATION PROTECTION

WRAPAROUND MK I

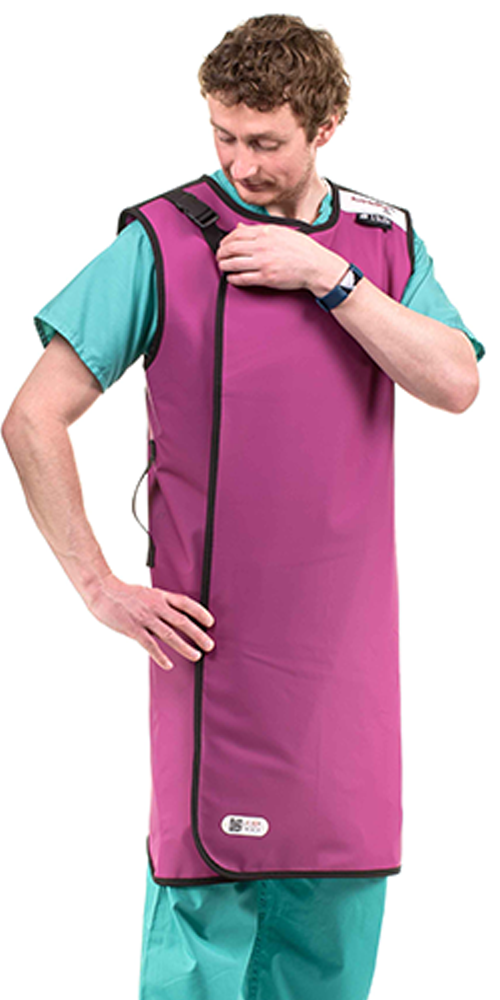

RADIATION PROTECTION

WRAPaROUND MK II

man in full wrap apron

RADIATION PROTECTION

FULL WRAP

TOP AND KILT DESIGNS

Two piece designs offer a greater degree of flexibility. We have a selection of tops and kilt that create a comfortable combination that splits the weight between your shoulders and hips. This design is popular in interventional environments when aprons are worn for longer periods.

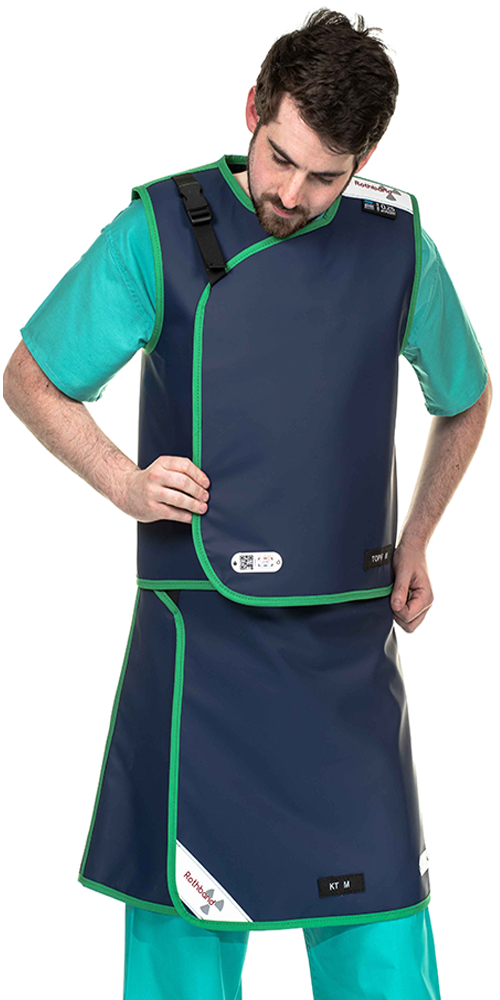

RADIATION PROTECTION

WRAP TOP

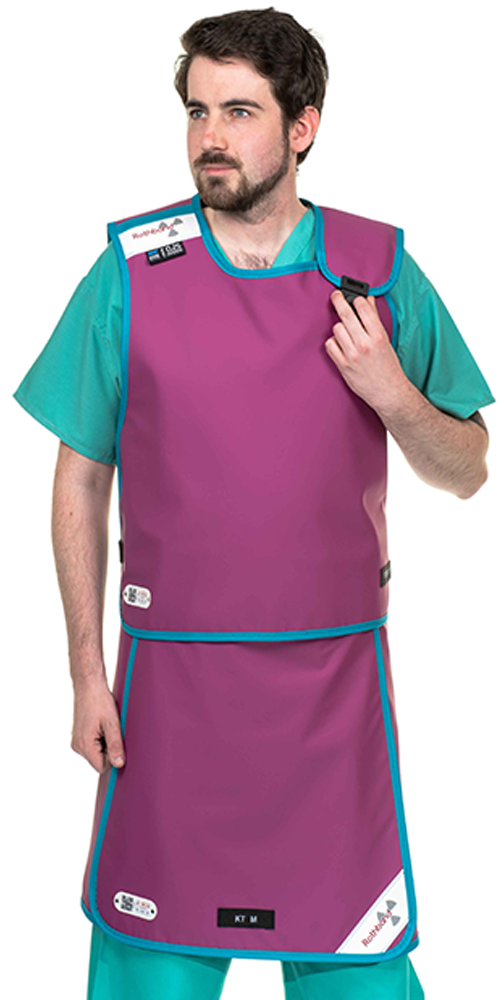

man in standard top apron

RADIATION PROTECTION

STANDARD TOP

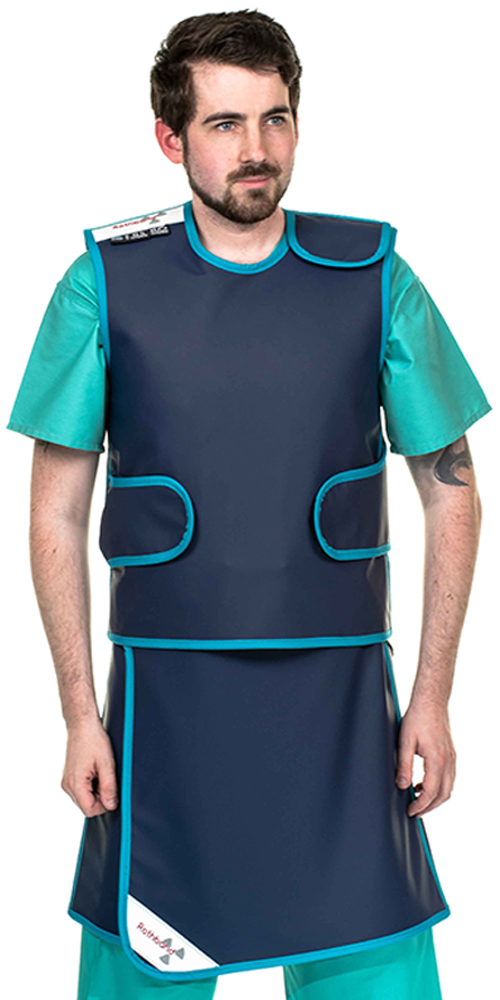

man in endurance top apron

RADIATION PROTECTION

ENDURANCE TOP

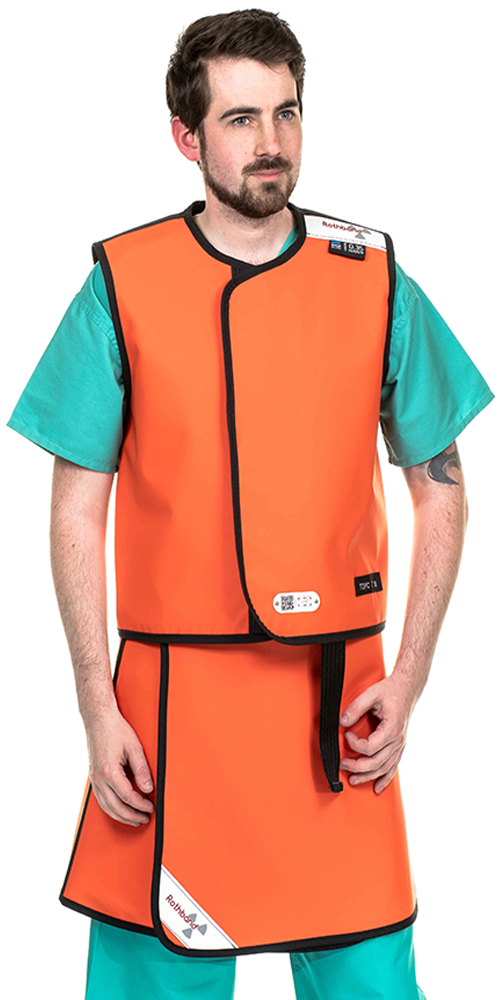

man in jecket top apron

RADIATION PROTECTION

JACKET TOP

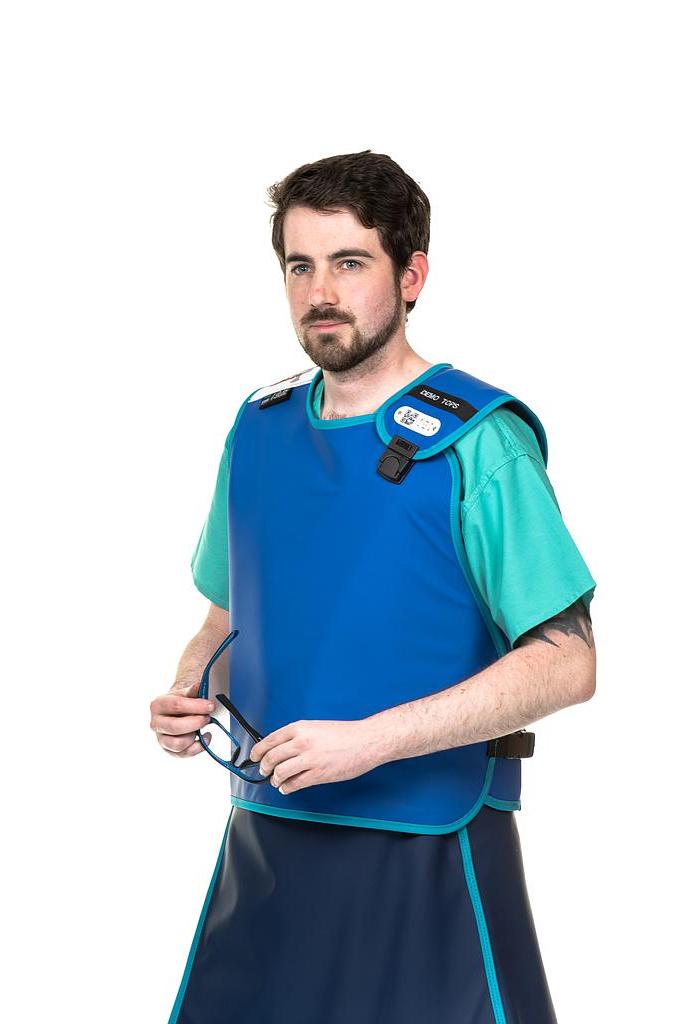

RADIATION PROTECTION

DR C STYLE TOP

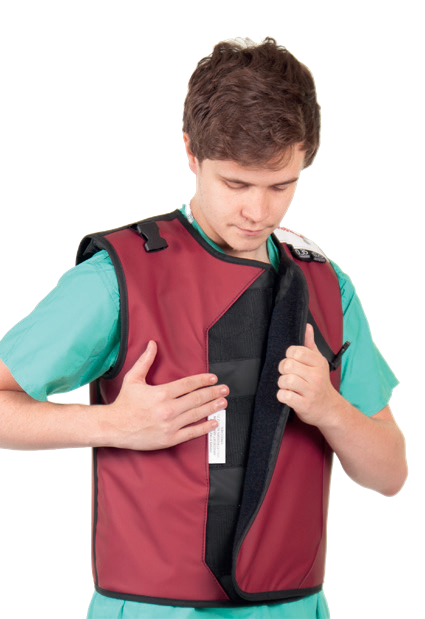

man in full wrap top apron

RADIATION PROTECTION

FULL WRAP TOP

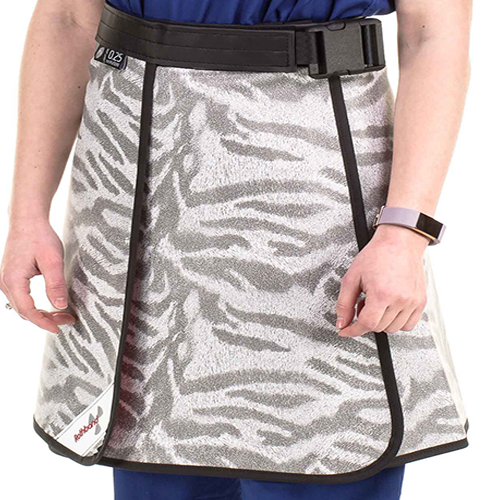

paron 3 piece kilt

RADIATION PROTECTION

3 PIECE KILT

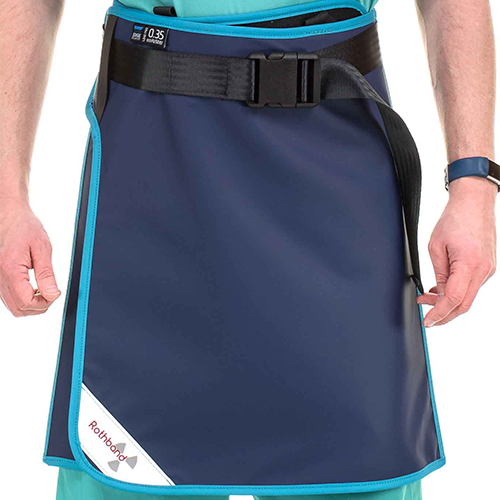

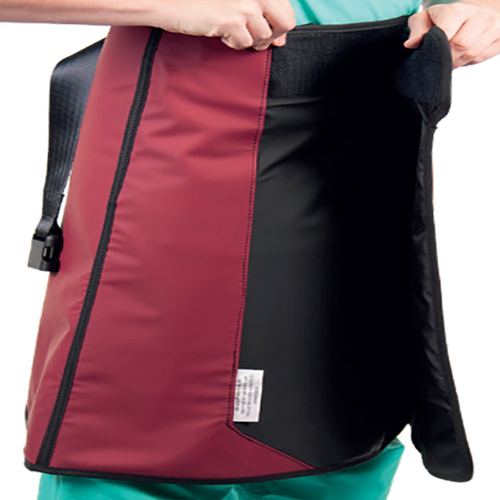

apron full wrap kilt

RADIATION PROTECTION

WRAP KILT

RADIATION PROTECTION

full wrap KILT

GLASSES

The International Commission on Radiation Protection (ICRP) in 2011 recommended the lowering of the annual eye lens dose limit from 150 mSv/year to 20 mSv/year in order to reduce the risk of X-ray-induced lens opacity in medical staff.

NOTHING CATCHING YOUR EYE?

Follow the link to see a much wider selection of frames

ANCILLARY PRODUCTS

Aprons are a staple of the radiation protection arsenal, but other areas are as radiosensitive and its important we protect these areas as well.

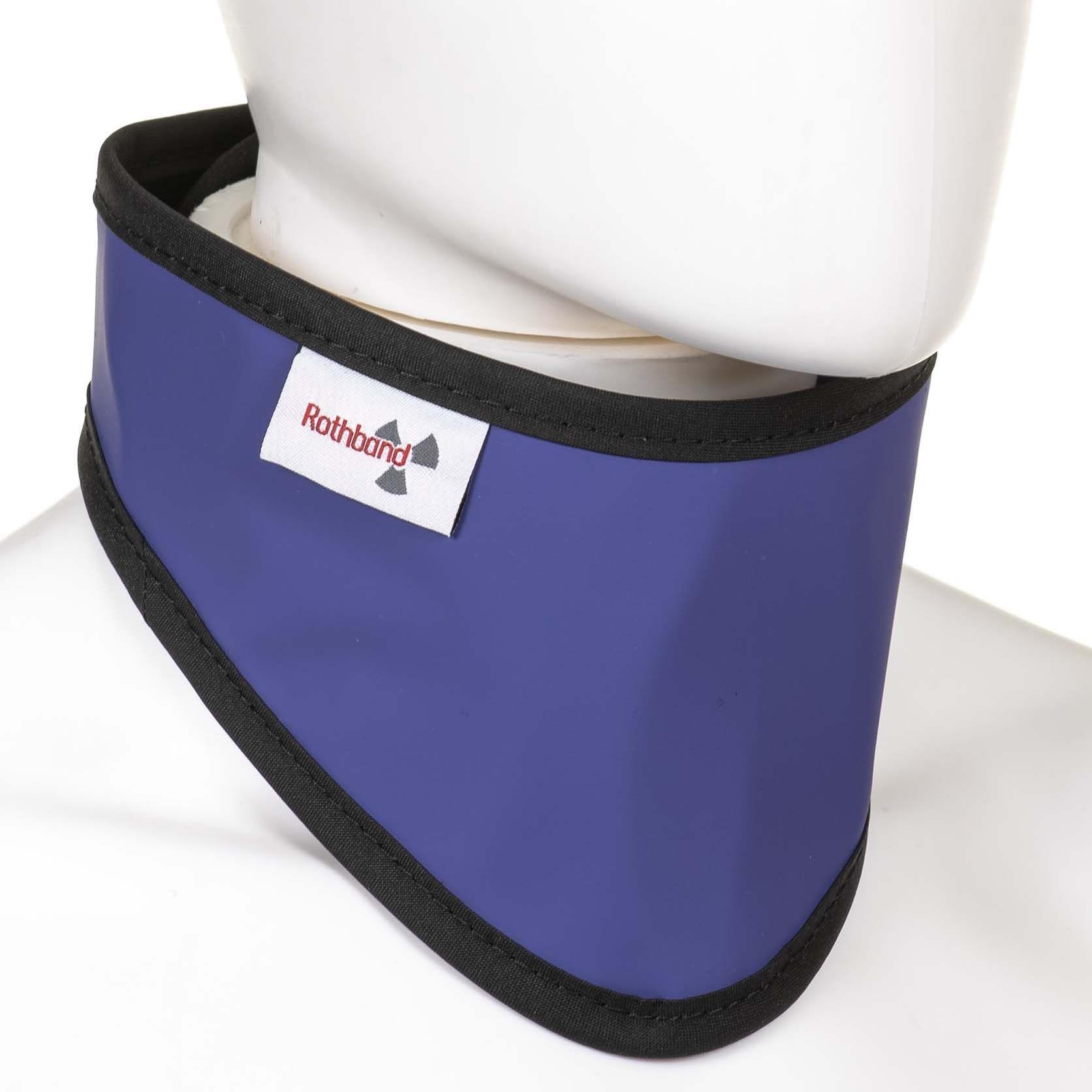

d-type thyroid collar

 RADIATION PROTECTION

D-TYPE THYROID COLLAR

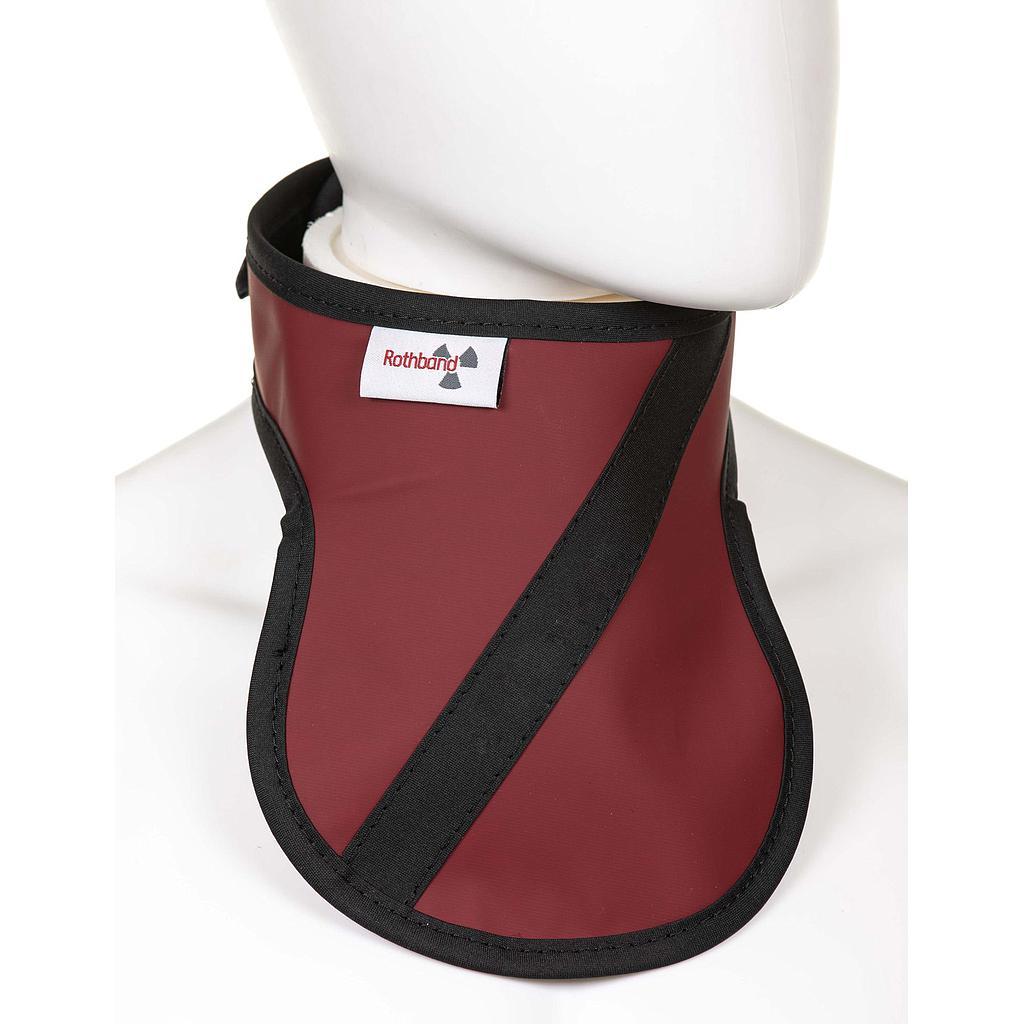

v-type thyroid collar

RADIATION PROTECTION

V-TYPE THYROID COLLAR

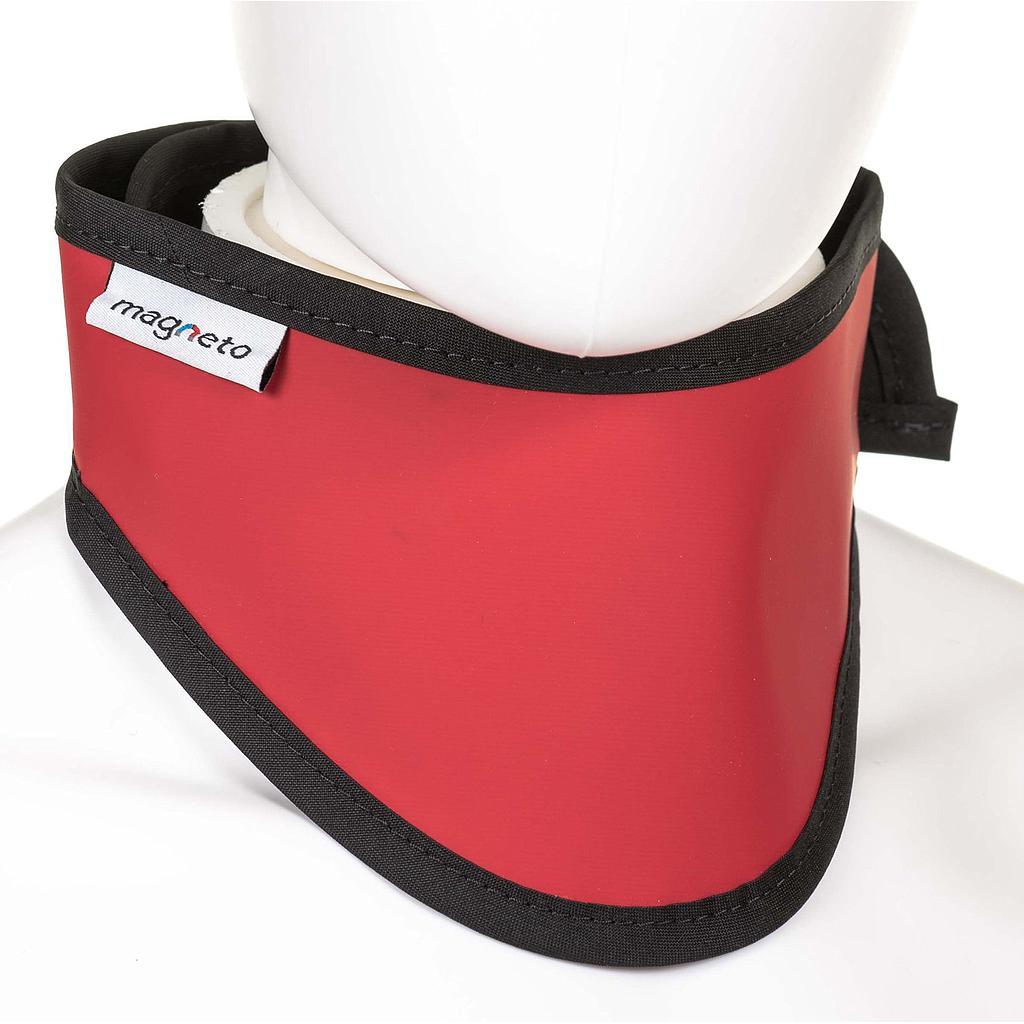

magnetic thyroid collar

RADIATION PROTECTION

MAGNETIC THYROID COLLAR

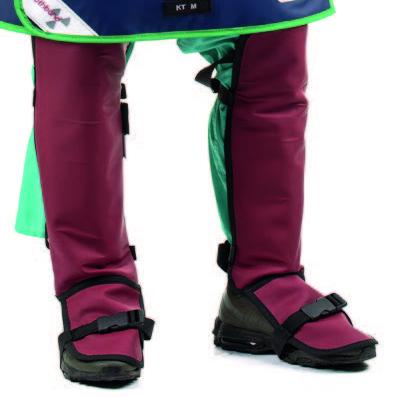

cricket pads protection

RADIATION PROTECTION

CRICKET PADS

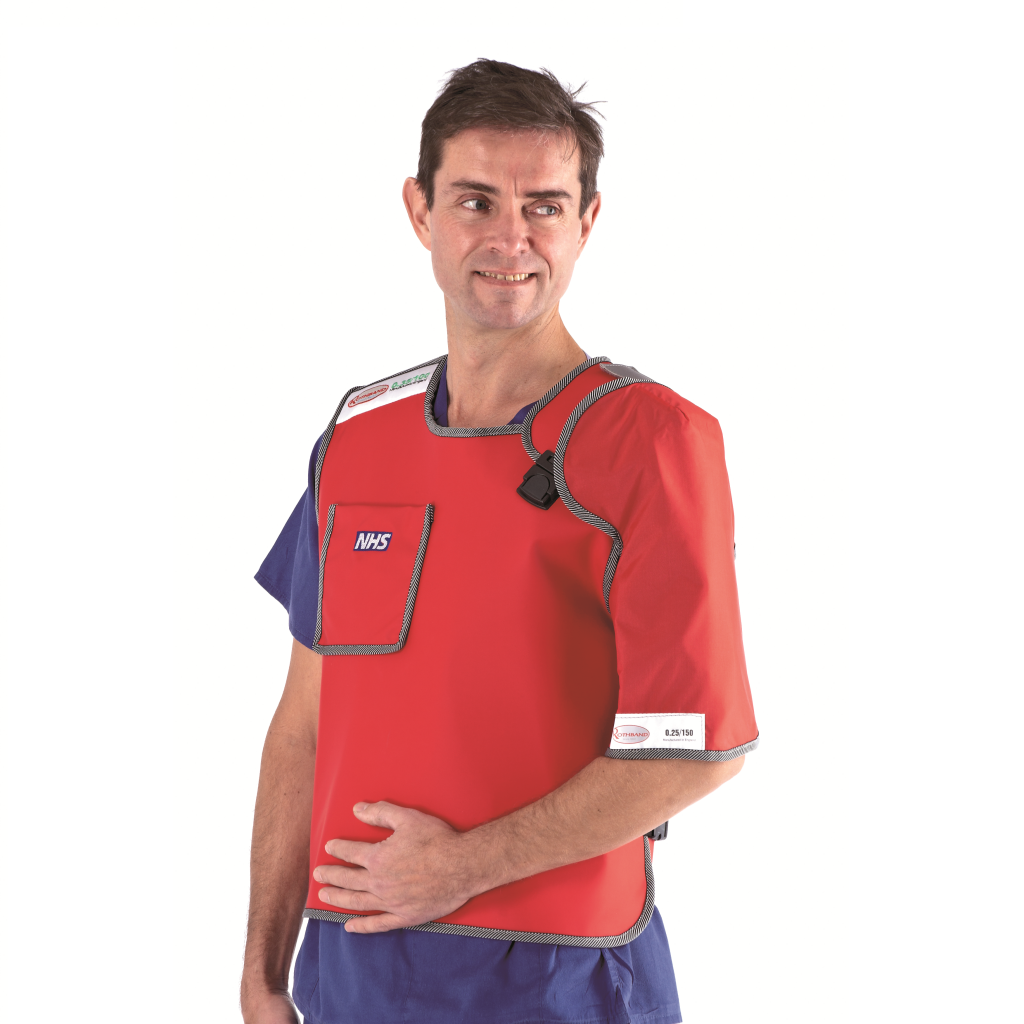

lead apron sleeves

RADIATION PROTECTION

SLEEVES

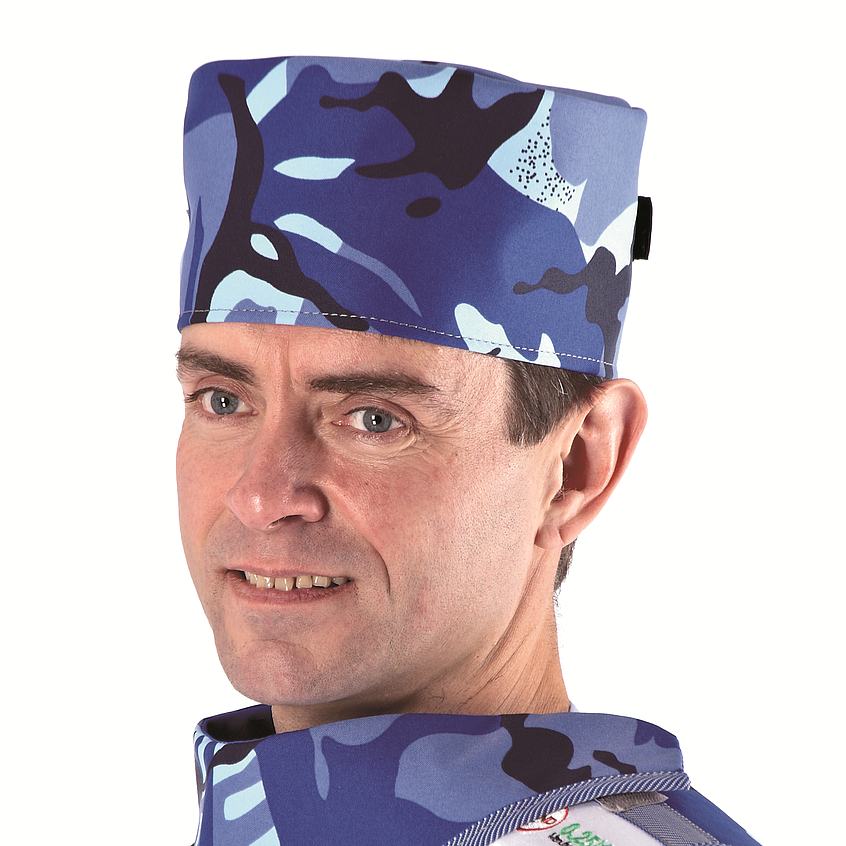

scatter cap

RADIATION PROTECTION

SCATTER CAP

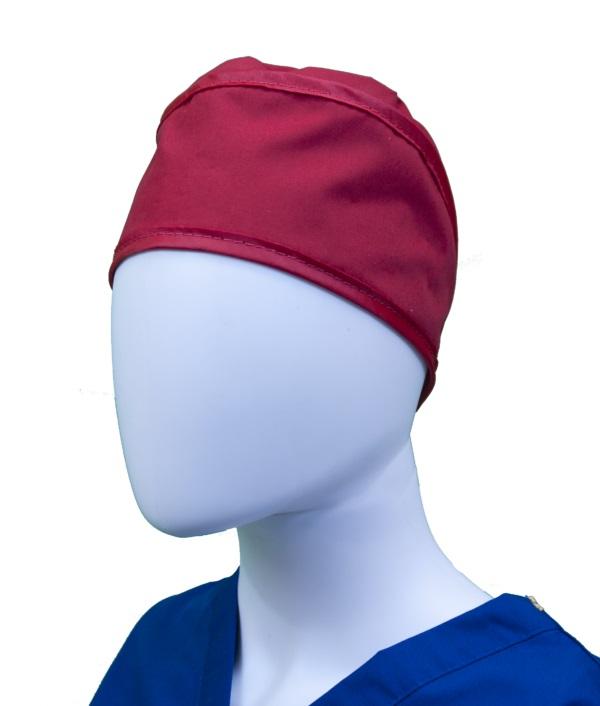

scatter cap light

RADIATION PROTECTION

SCATTER CAP LIGHT

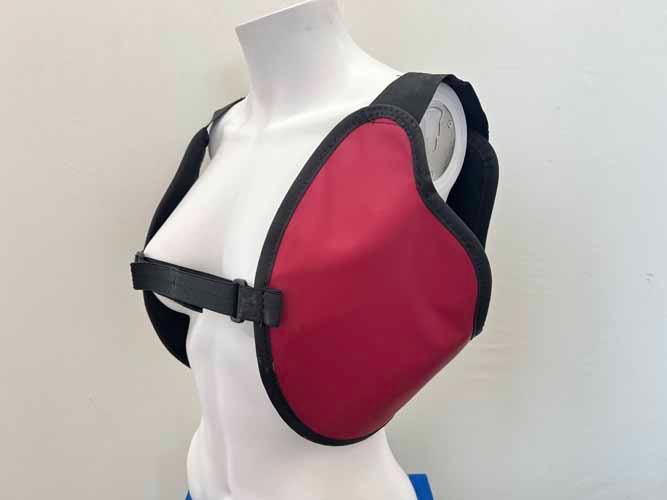

RADIATION PROTECTION

Mammo shield

 SIZING


LOOKING FOR YOUR SIZE?

We make standard sizes or can customise an apron to meet your individual needs.

SINGLE PIECE APRON SIZING CHART

PETITESMALLMEDIUMLARGEX LARGEXX LARGE
Chest - cm
(Fits up to)
8090105115125135
Chest - Inches
(Fits up to)
313541454853
Waist - cm
(Fits up to)
667888100113125
Waist - Inches
(Fits up to)
263134394449
Hips - cm
(Fits up to)
8595110125140155
Hips - Inches
(Fits up to)
333843495561

TOP SIZING CHART

PETITESMALLMEDIUMLARGEX LARGEXX LARGE
Chest - cm
(Fits up to)
8090105115125135
Chest - Inches
(Fits up to)
313541454853
Waist - cm
(Fits up to)
667888100113125
Waist - Inches
(Fits up to)
263134394449

KILT SIZING CHART

PETITESMALLMEDIUMLARGEX LARGEXX LARGE
Waist - cm
(Fits up to)
667888100113125
Waist - Inches
(Fits up to)
263134394449
Hips - cm
(Fits up to)
8595110125140155
Hips - Inches
(Fits up to)
333843495561

APRON LENGTHS

SHORTMEDIUMLONGEXTRA LONG
One Piece Length - cm8590100110
Top Length - cm55586065
Kilt Length - cm50535560

Odoo • Image and Text

SIZING GUIDE

See our sizing guide to help get you the most comfortable fit, and more importantly, the guaranteed area protection that you require.

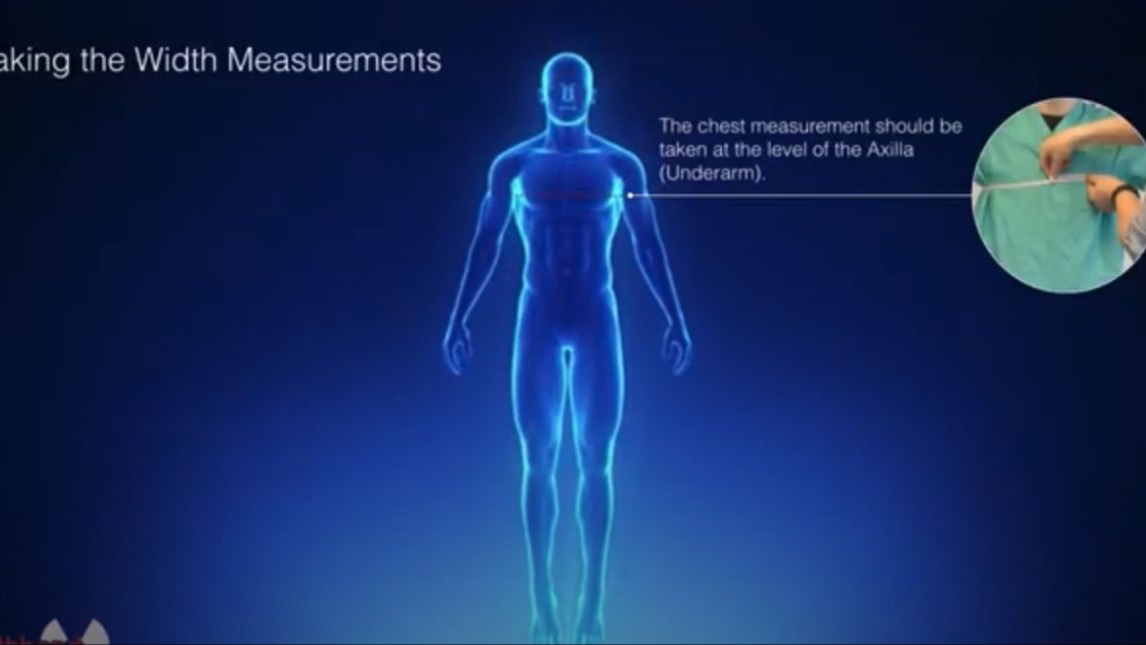

This quick video will help you get the most accurate measurements for your apron. However, if you want to be extra-certain on the size and length required, get in touch with us and we'll arrange one of our area Sales Reps to measure you correctly.

CORE MATERIALS


lightweight lead


LIGHTWEIGHT LEAD

Lightweight lead is better suited to environments when the apron will be worn for shorter periods as whilst it is a much cheaper option it is also significantly heavier than our edge bilayer, lead free option.

As the Lightweight lead is tested up to 150 Kv it makes this material more suitable for high KV procedures.

If you are working in a high KV environment, contact us about our edge bilayer Lead option which offers a weight saving whilst maintaining the high Kv protection.


Lead EquivalenceAttenuation (%)Weight Kg/M2
50 kVp70 kVp90 kVp110 kVp120 kVp150 kVp
0.25 mm Pb98.895.190.787.586.282.73.34
0.35 mm Pb99.797.694.592.391.388.64.76
0.5 mm Pb*>99.999.197.496.195.5936.8


edge bilayer

ULTRA LIGHTWEIGHT, EDGE BILAYER LEAD FREE

Our ultralight Edge Bilayer - Lead Free solution, By layering Antimony with Bismuth it provides a superior level of protection that conforms to the highest standards at the lowest weights.

  • This solution, is better suited to environments when the apron will be worn for longer periods as whilst it is a much more expensive option it is also significantly lighter than our lightweight lead option
  • In order to keep the weight low, our Bilayer material is tested to 110Kv, which helps us reduce the weight and is suitable for most interventional work when the aprons may be worn for longer periods.
  • If you are working in a high KV environment, contact us about our edge bilayer Low Lead option which offers a weight saving whilst maintaining the high Kv protection.


Lead EquivalenceAttenuation (%)Weight Kg/M2
50 kVp70 kVp90 kVp110 kVp120 kVp150 kVp
0.25 mm Pb98.796.19287.82.8
0.35 mm Pb99.69895.392.73.8
0.5 mm Pb*>99.999.497.896.35.6

MEETING THE HIGHEST STANDARDS AT THE LIGHTEST WEIGHTS

Testing in accordance with BS EN 61331-1:2014 BBG* using inverse broad beam geometry. Performed by the National Physics Laboratory.

Figures are for guidance and all materials passed the relevant testing.

FABRIC OPTIONS


SOLID COLOURS


royal blue swatch

ROYAL BLUE


marine blue square

MARINE BLUE


orange swatch

ORANGE


rose swatch

ROSE


burgundy swatch

BURGUNDY


berry swatch

BERRY


red swatch

RED


violet swatch

VIOLET


grey swatch

GREY


light green swatch

LIGHT GREEN


khaki swatch

KHAKI


forest green swatch

FOREST GREEN


black swatch

BLACK


PATTERNS


zebra swatch

ZEBRA


paint splash swatch

PAINT SPLASH


rainbow swatch

RAINBOW


fireworks swatch

FIREWORKS


circles swatch

CIRCLES


tartan swatch

TARTAN


safari swatch

SAFARI


flame swatch

FLAME


camo pink swatch

CAMO PINK


camo blue swatch

CAMO BLUE


camo grey swatch

CAMO GREY


stars swatch

STARS


nursery swatch

NURSERY


pink flower swatch

PINK FLOWER


violet flower swatch

VIOLET FLOWER


BINDING


black binding swatch

BLACK


red binding swatch

RED


blue binding swatch

BLUE


green binding swatch

GREEN


dark pink binding swatch

DARK PINK


neon pink binding swatch

NEON PINK


teal binding swatch

TEAL


orange binding swatch

ORANGE


BINDING


black binding swatch

BLACK


red binding swatch

RED


blue binding swatch

BLUE


green binding swatch

GREEN


dark pink binding swatch

DARK PINK


neon pink binding swatch

NEON PINK


teal binding swatch

TEAL


orange binding swatch

ORANGE


BINDING


black binding swatch

BLACK


red binding swatch

RED


blue binding swatch

BLUE


green binding swatch

GREEN


dark pink binding swatch

DARK PINK


neon pink binding swatch

NEON PINK


teal binding swatch

TEAL


orange binding swatch

ORANGE


X-RAY GARMENT MANAGEMENT

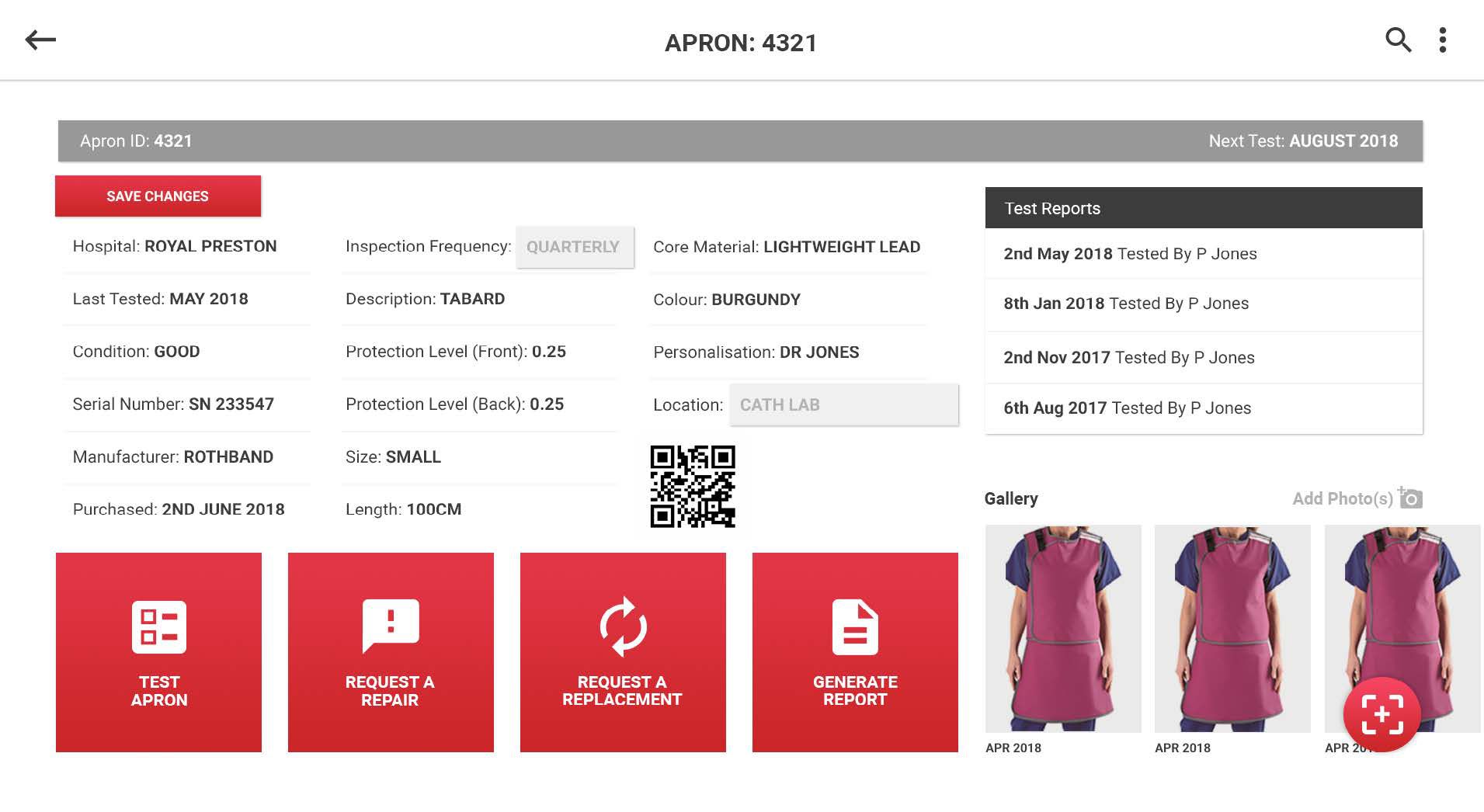

Rothband’s new X-RAY Track app greatly simplifies the tracking of radiation protection equipment.


It works on all computers and Android TABLETS, helping you get the job done on the go.


Simply input details of your facility’s radiation equipment into our software, then attach one of our labels to the garment.


These labels feature QR codes, tying the garment to it's relevant information.
