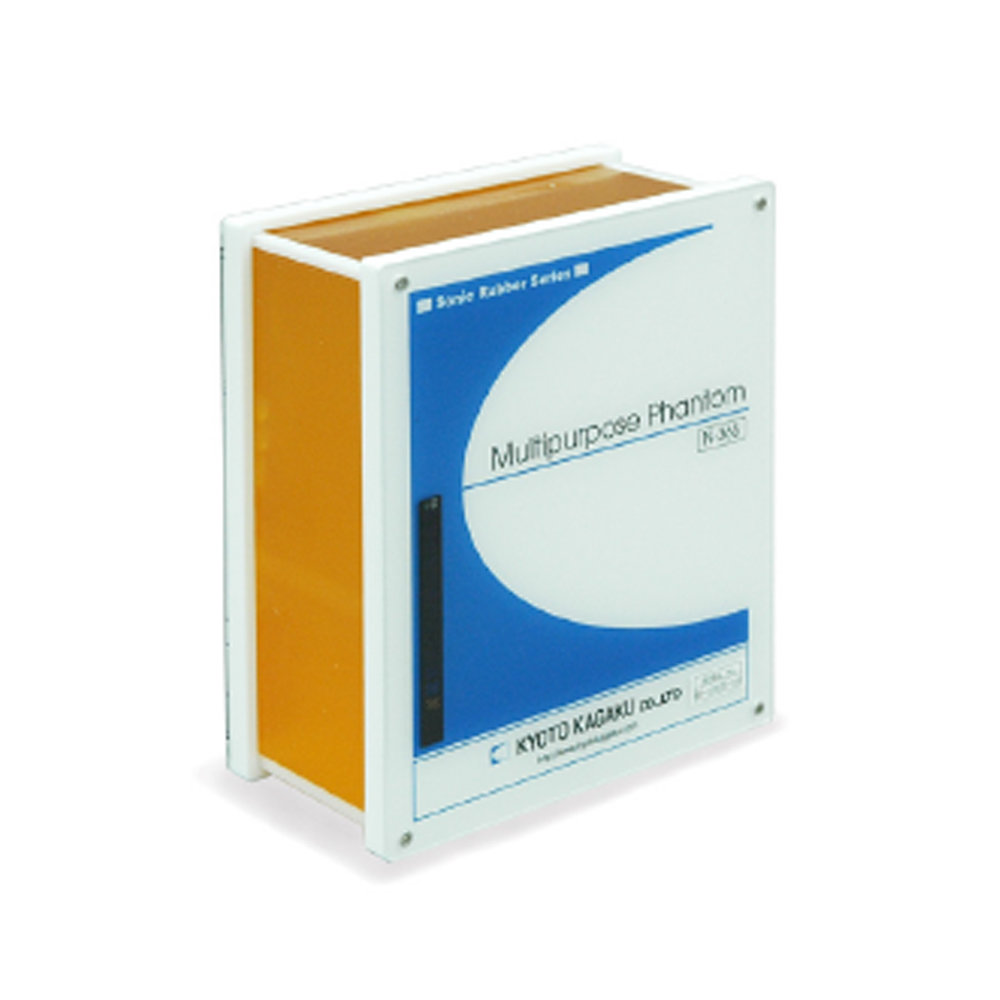

Ultrasound Quality Assurance Phantom Multi Purpose Phantom N-365

£ 1.05 £ 1.05
0.0% Off

Ultrasound Quality Assurance Phantom Multi Purpose Phantom N-365

(0 review)

Durable and stable/Useful both for daily assessment and further research

    This combination does not exist.


    Share :

    FeaturesMaintenace free, and no calibration
    Training skills / ApplicationsGray scale for evaluation, cyst targets with non-resonance cylinders, line targets for geometrical evaluation including close range (dead zone) resolution, axial and lateral resolution are prepared for scanning. The phantom is designed to allow scanning from all four side walls.
    Case / PathologyStrings target, Cyst target, Close tange resolution, Gray scale, Axial resolution, Lateral resolution
    Set includes1 phantom, 1 carrying case
    Size (approx.)19 x 22 x 7 cm ( 7.6 x 8.8 x 2.8 in.)
    Packing size (approx.)W35x D36x H24㎝/W14x D14x H9.5in
    Weight (approx.)3.6kg/ 7.9lbs
    Packing weight (approx.)6kg
    MaterialsUrethane elastomer, acryl, nylon/Latex free
    Related productsUS-4 Breast Ultrasound QA Phantom
    Sonic velocitySonic velocity: 1432m/ sec at 25 degrees C Attention coecient: 0.59 dB/ cm MHz at 25 degree C
    Acoustic impedance1.38 rayl at 25 degree C
    UpdateAugust 4, 2020
