Product Image

Lower Body X-Ray Shield - 78

£ 1,254.75 £ 1,254.75
0.0% Off

Lower Body X-Ray Shield - 78

(0 review)

Lower body table shield with a single friction pivot and optional top shields.
78 cm in Length

  • Small Top Shield
  • Large Top Shield
  • Table Shield

This combination does not exist.

Brand: Kenex

Share :

  • Reduces exposure to scatter radiation emanating from the table or patient’s body.
  • Easily mounts to either side of the table allowing pivotal arm to always face the head end.
  • Lightweight, durable structure supporting a flexible lead curtain (0.5 mm lead equivalent).

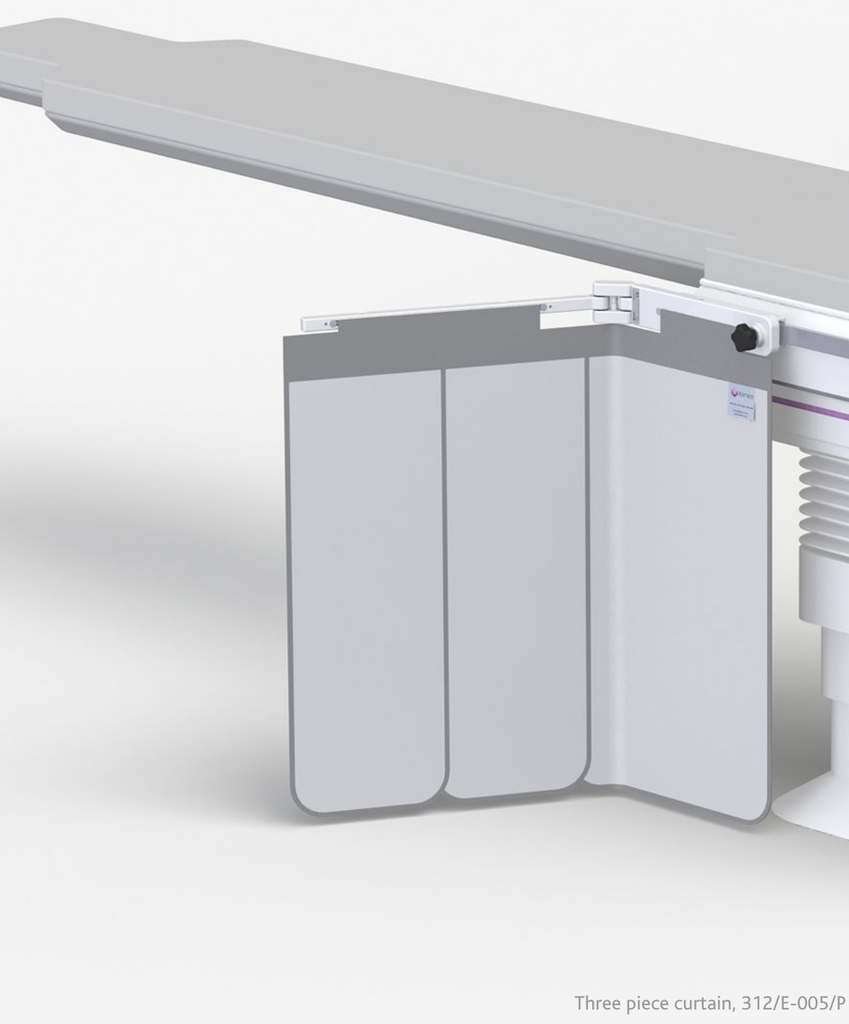

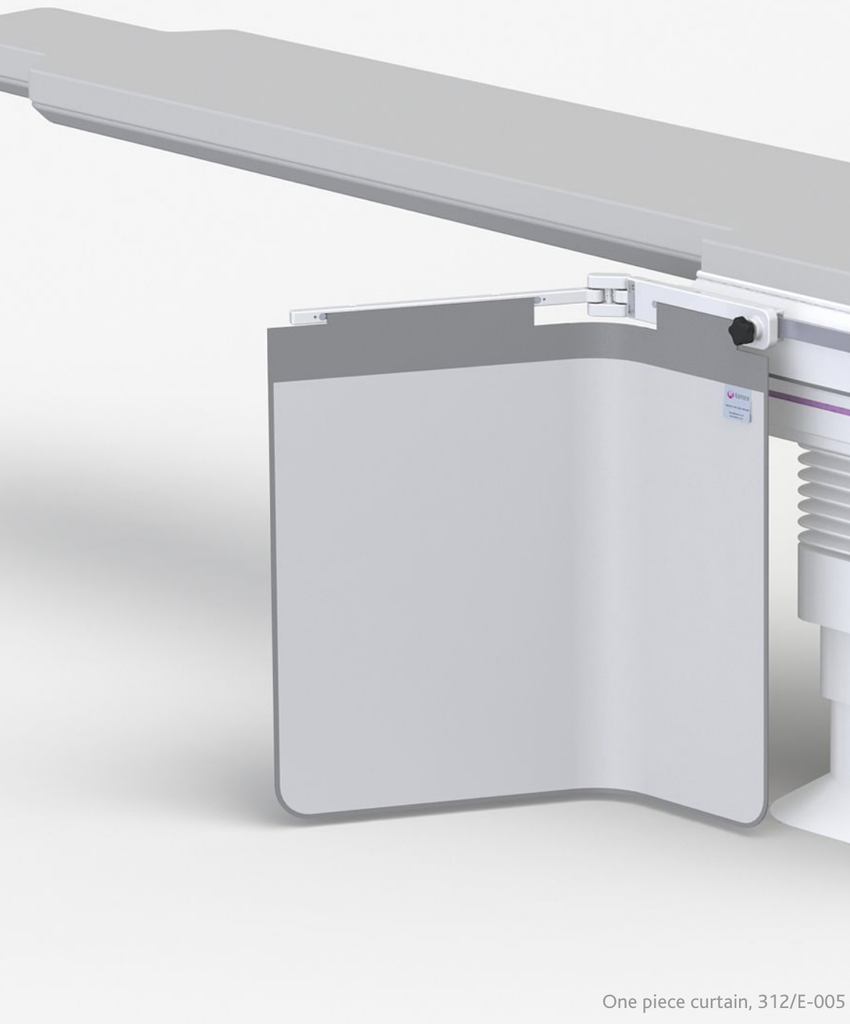

  • Curtain is available in one piece or split into three separate overlapping panels.
  • 78 cm wide x 70 cm high curtain providing a safe zone of occupancy.
  • 29 cm wide attachment bracket slides onto a 25 mm or 29 mm high tableside accessory rail (max. 11 mm depth).
  • Securing handle position allows the shield to overhang the rail end or be repositioned further along the table.
  • Pivotal arm with a single friction pivot can swivel outwards to form a 49 cm wing.
  • Self-adjusting friction pivot ensures no unwanted curtain movement even when the table is tilted.
  • Curtains 0.5 mm lead equivalent layer is bonded to its outer covering meaning the protective layer is unable to tear or fall away unnoticed.
  • Curtain forms around an under table x-ray tube without impeding movement.

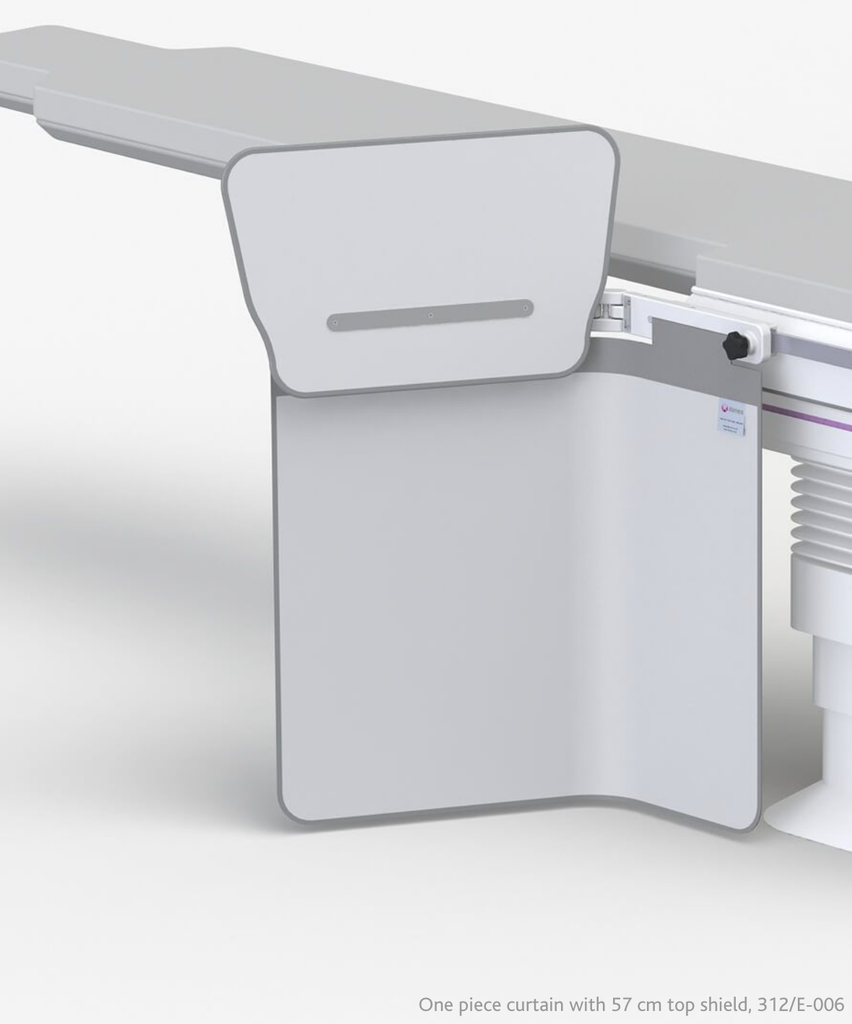

  • If required, the curtain can also hold two semi-flexible top shields, 1 x 57 cm & 1 x 27 cm.

Optional: 1 x 57 cm wide semi-flexible, lift-off top shield (312/DS/3.32)

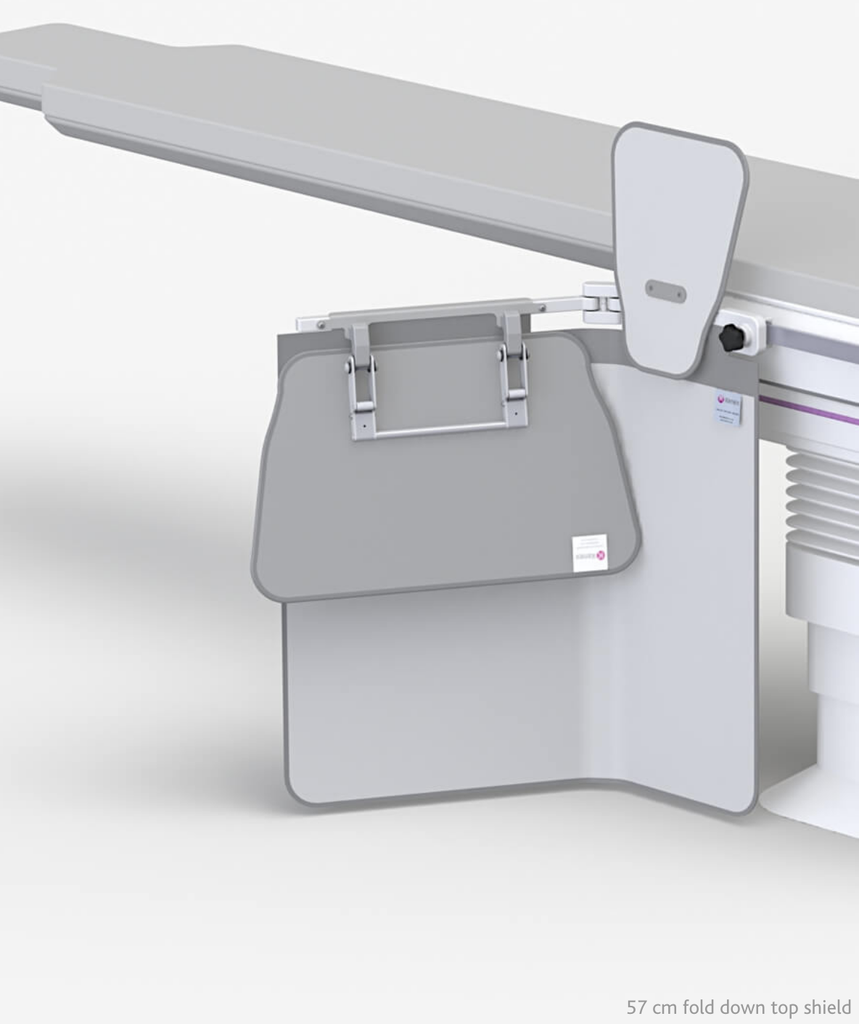

Optional: 1 x 57 cm wide semi-flexible, fold-down top shield (312/DS/3.33)
Optional: 1 x 27 cm wide, semi-flexible, lift-off top shield (312/DS/3.30)
