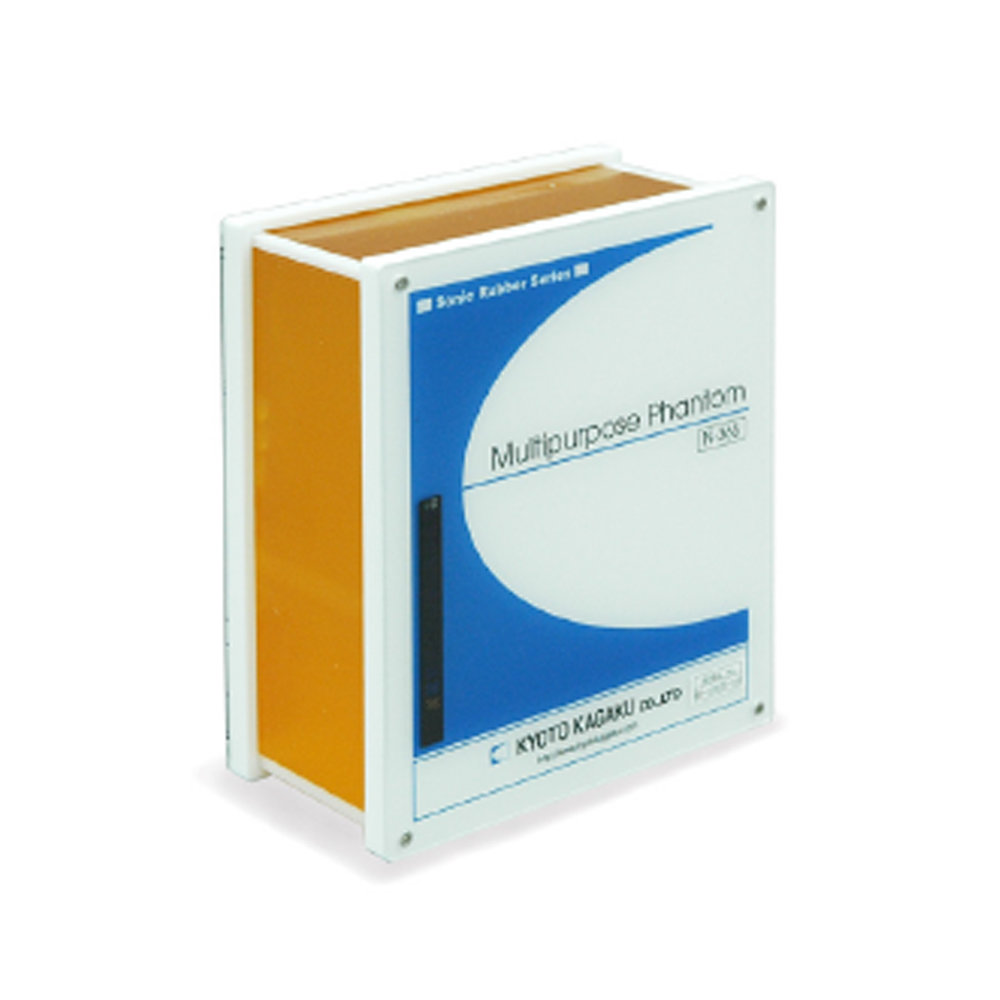

Ultrasound Quality Assurance Phantom Multi Purpose Phantom N-365
0.0%
Off
| Features | Maintenace free, and no calibration |
|---|---|
| Training skills / Applications | Gray scale for evaluation, cyst targets with non-resonance cylinders, line targets for geometrical evaluation including close range (dead zone) resolution, axial and lateral resolution are prepared for scanning. The phantom is designed to allow scanning from all four side walls. |
| Case / Pathology | Strings target, Cyst target, Close tange resolution, Gray scale, Axial resolution, Lateral resolution |
| Set includes | 1 phantom, 1 carrying case |
| Size (approx.) | 19 x 22 x 7 cm ( 7.6 x 8.8 x 2.8 in.) |
| Packing size (approx.) | W35x D36x H24㎝/W14x D14x H9.5in |
| Weight (approx.) | 3.6kg/ 7.9lbs |
| Packing weight (approx.) | 6kg |
| Materials | Urethane elastomer, acryl, nylon/Latex free |
| Related products | US-4 Breast Ultrasound QA Phantom |
| Sonic velocity | Sonic velocity: 1432m/ sec at 25 degrees C Attention coecient: 0.59 dB/ cm MHz at 25 degree C |
| Acoustic impedance | 1.38 rayl at 25 degree C |
| Update | August 4, 2020 |
